Boardstate for Hermes

Boardstate gives Hermes a durable board that the agent can build with native tools. Open the Board tab in hermes dashboard or the Board page in Hermes Desktop, then ask Hermes to create tabs, add widgets, arrange a layout, or review its design. Widgets include notes, markdown, tables, charts, KPI cards, live Hermes data, and approvals. Changes are stored as a validated workspace document and appear live when the dashboard socket is available.

Boardstate is one unified Hermes plugin: the agent tools, Web dashboard tab, Python backend, Desktop page, and loopback Node sidecar install from this repository together.

Install

Boardstate requires Hermes 0.21.2 or newer and Node.js 20 or newer. Boardstate looks for Node in HERMES_NODE_BIN, then in Hermes' own Node lookup, then on PATH.

hermes plugins install boardstate --enable

This installs the catalog entry at its reviewed pin, and Hermes accepts the scanner's caution verdict for that pin without a prompt. The bare name resolves only after the Hermes plugin catalog lists Boardstate; until then, use the owner/repo form below.

The owner/repo form (hermes plugins install 100yenadmin/boardstate-hermes-plugin) is not reviewed or pinned. It prints the scanner findings and asks for confirmation; pass --force to accept them non-interactively, and --ref <40-character sha> to pin a commit.

To enable an installed copy later:

hermes plugins enable boardstate

Start hermes dashboard for the Web tab. The unified package also contributes a Desktop plugin; enable Boardstate under Capabilities → Plugins in Hermes Desktop. The two surfaces have separate enable switches by design.

After you update or reinstall the plugin, quit and reopen Hermes Desktop. Rescan under Capabilities → Plugins copies the new Desktop files, but a Desktop plugin that is already loaded keeps running its old code until the app restarts.

Profiles

On Hermes 0.21.x, hermes -p <name> dashboard re-runs as the default profile with --open-profile <name>. Web dashboard plugins load from the root ~/.hermes/plugins, and their state comes from the dashboard process's HERMES_HOME, so the web Board tab shows the default profile's board. Install with hermes plugins install … (no -p) for the dashboard, and with hermes -p <name> plugins install … for that profile's agent tools. Hermes Desktop loads the Desktop half app-wide from ~/.hermes/desktop-plugins once you switch it on under Capabilities → Plugins, and talks to the active profile's backend.

Uninstall

Run hermes plugins remove boardstate. The board itself stays in the boardstate-state directory of the profile's Hermes home: $HERMES_HOME when you set it, otherwise ~/.hermes for the default profile and ~/.hermes/profiles/<name> for a named profile. If you set BOARDSTATE_HERMES_STATE_DIR, the board is in that directory instead. Delete it if you no longer need the board.

Native agent tools

No hand-written mcp_servers entry is needed. The package registers these 19 tools in the boardstate toolset:

• boardstate_workspace_get
• boardstate_tab_create, boardstate_tab_update, boardstate_tab_delete, boardstate_tabs_reorder
• boardstate_widget_add, boardstate_widget_update, boardstate_widget_move, boardstate_widget_remove
• boardstate_layout_set, boardstate_workspace_replace, boardstate_undo
• boardstate_widget_catalog, boardstate_design_review, boardstate_widget_scaffold, boardstate_data_read
• boardstate_tool_search, boardstate_connector_read, boardstate_connector_invoke

The two connector invocation tools and boardstate_tool_search are always discoverable. Without an operator-authored connector configuration they return a clear no connectors configured error.

The existing Streamable HTTP MCP endpoint remains available as an optional compatibility path at /api/plugins/boardstate/mcp, but normal Hermes use should rely on the native tools.

What runs

Boardstate starts one Node sidecar on an ephemeral 127.0.0.1 port. Every spawn gets a random nonce. Its mode-0600 port record contains the port, nonce, process id, and owner kind so the agent and dashboard do not create competing writers.

• An agent tool call can start the sidecar without the dashboard. That sidecar gets no operator secret at all, so operator-only verbs are unavailable until the dashboard replaces it.
• When the dashboard finds an agent-owned sidecar, it terminates and replaces that process with a dashboard-owned one. Both use the same state directory, so the board survives.
• An agent-owned sidecar is stopped when its owner exits if no live agent process adopted it. A process never stops a sidecar whose port record has moved to another spawn.
• If every process named in the sidecar's port record (its owner and any adopters) dies without cleaning up, for example after SIGKILL, the sidecar notices within a few seconds and shuts itself down.
• Live Hermes data widgets use the authenticated dashboard API. When only the agent half is running, they show an explicit "open the Board tab" unavailable message instead of crashing.

The Desktop plugin stays inside the public plugin SDK. It uses ctx.register with ROUTES_AREA and SIDEBAR_NAV_AREA for the page and its nav row, ctx.rest for Boardstate requests, ctx.socket for server pushes, ctx.onDispose for cleanup, ctx.setTimeout when the SDK provides it (with a disposed fallback timer on older SDKs), and host.notify for template errors. OAuth remotes support request/response traffic but the SDK intentionally provides no live socket there, so the page reports live updates unavailable instead of pretending to be live.

Network and security disclosure

Boardstate makes no third-party network request by default.

• The sidecar, dashboard bridge, native tool wrapper, and optional MCP path communicate on loopback only. Live Hermes widgets call the local Hermes dashboard API.
• External connectors are opt-in. Only an operator-authored $HERMES_HOME/boardstate-state/boardstate.connectors.json can enable one. A connector may spawn its configured local command or contact its configured remote MCP URL; those are the only runtime paths that can reach outside Hermes.
• Connector reads require an approved grant. Connector mutations park for an operator decision. A changed connector manifest re-pends its grant.
• Operator approve/confirm/deny verbs use a separate in-memory secret that is never written to the port record. In gated multi-user mode, boardstate.operators.json is also required.
• Sidecar traffic never goes through an HTTP(S)_PROXY from the environment.
• The sidecar inherits the Hermes process environment, so provider keys there are available to connector env references. A dashboard-owned sidecar also receives the dashboard session token so live Hermes data widgets can read the local dashboard API.
• Limit of the operator gate. It keeps approvals off the agent's tool surface: no boardstate_* tool, MCP call or board WebSocket can approve or confirm anything. It is not a boundary against an agent that has unrestricted shell access as the same OS user. In ungated loopback mode, such an agent can read the dashboard page, which carries the dashboard session token. In any mode, it can read a same-user process's environment, including the dashboard-owned sidecar's operator secret. If approvals must hold against the agent itself, run the agent's terminal in an isolated backend (for example Docker, SSH or Modal) or as a different OS user from the dashboard.
• Approved custom widgets run in an opaque-origin iframe with a no-network Content Security Policy. Pending, rejected, and unknown widget assets all return 404.

Connector configuration

Connectors are optional. For example, after installing OfficeCLI, an operator can create:

{
  "connectors": [
    { "name": "officecli", "transport": "stdio", "command": "officecli", "args": ["mcp"] }
  ]
}

Save that as $HERMES_HOME/boardstate-state/boardstate.connectors.json, restart the dashboard, and approve only the requested tools you want. See docs/connectors/officecli.md.

Connector grants are scoped to the active Hermes profile: Boardstate keeps separate state for each HERMES_HOME/profile, while sessions within one profile are the same agent and intentionally share native-tool grants.

Security scanner notes

hermes plugins validate reports caution. All five HIGH findings are in the committed dashboard/sidecar/server.js bundle, which is generated from the pinned packages in package-lock.json. Line numbers are for the 1.5.0 build; reviewers should still inspect every warning:

• dump_all_env at server.js:3082: ajv's compiler (ajv/dist/compile) names a schema environment variable env (env = env || new SchemaEnv(...)). It does not touch process.env.
• dump_all_env at server.js:7124: path-key reads the name of the PATH key from process.env.
• dump_all_env at server.js:7144: cross-spawn resolves a connector command against process.env (PATH).
• path-key and cross-spawn are transitive dependencies of the MCP SDK's stdio client. None of these returns the environment to an agent.
• exfil_service at server.js:28509: the optional Pipedream preset URL string in the bundled @boardstate/broker package. It is inert until an operator authors and approves that connector.
• sudo_usage at server.js:25999: a comment in the MCP SDK's stdio client ("inspired by the default env inheritance of sudo"), not a command Boardstate executes.

The MEDIUM and LOW findings are:

• Character-code, base64, Unicode-escape and relative-path matches in the minified bundles: server.js, dashboard/dist/index.js, dashboard/vendor/boardstate-browser.js and desktop/plugin.js.
• One oversized-file warning, for server.js only.
• The repository's own CI install steps (pip install, git clone in .github/workflows/ci.yml).
• subprocess use in test/.
• An example loopback dashboard address in a comment in dashboard/sidecar/src/hermes-data.ts.

Catalog self-updater check: the catalog CI flags a bundled JS file that contains both a GitHub raw-content URL and a file-write call. In the sidecar bundle, the only such URL was ajv's $data meta-schema identifier (its $id and the one $ref to it), which is never fetched. build.mjs rewrites that identifier consistently to https://ajv.js.org/refs/data.json#, so the check stays meaningful for this bundle: a later releases/latest or raw.githubusercontent.com URL next to a file write would still trip it. This repository's CI replays the check, with upstream's exact file enumeration, on every build. Boardstate has no updater; updates arrive only through a new catalog pin plus hermes plugins update boardstate.

dangerous scanner results are not accepted. Reproduce the reviewed artifacts with:

npm ci && npm run build && git diff --exit-code

Development and tests

The build produces the Web bundle, root desktop/plugin.js, sidecar bundle, vendored Lit assets, and dashboard/tools.schema.json. The schema is generated from the same Boardstate tool factory and connector definitions the sidecar invokes.

CI keeps the existing sidecar, connector, operator, widget, theme, Web, Desktop, and Python tests. It also pins Hermes upstream commit 38c289c0146ed8c8b2b767eca1fff6f5b7e6382e and runs plugin validate, doctor, compat, native-tool dispatch, WebSocket auth, and the schema sync gate.

Screenshots

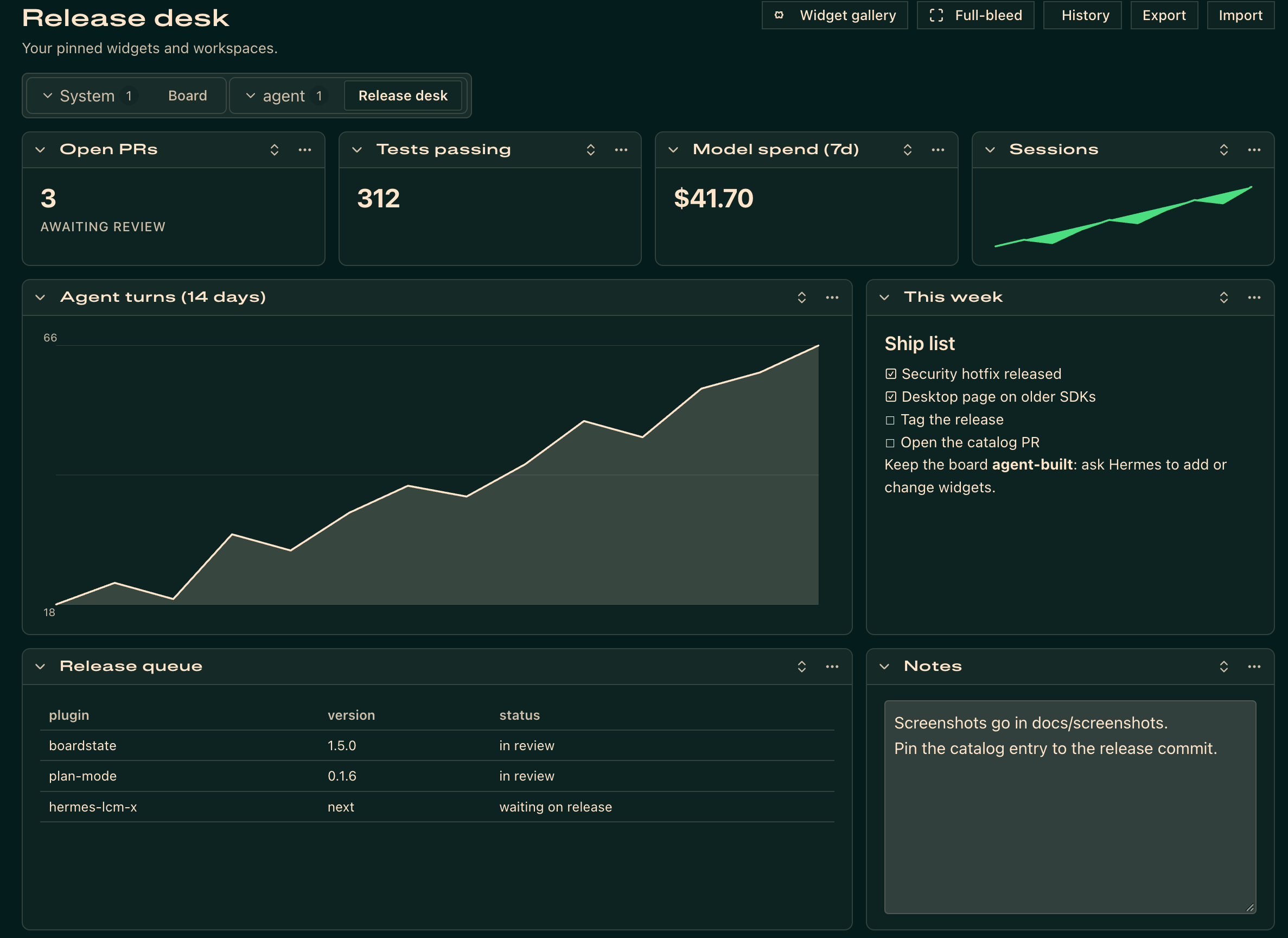

A board built by the agent through the native tools, in the Web Board tab:

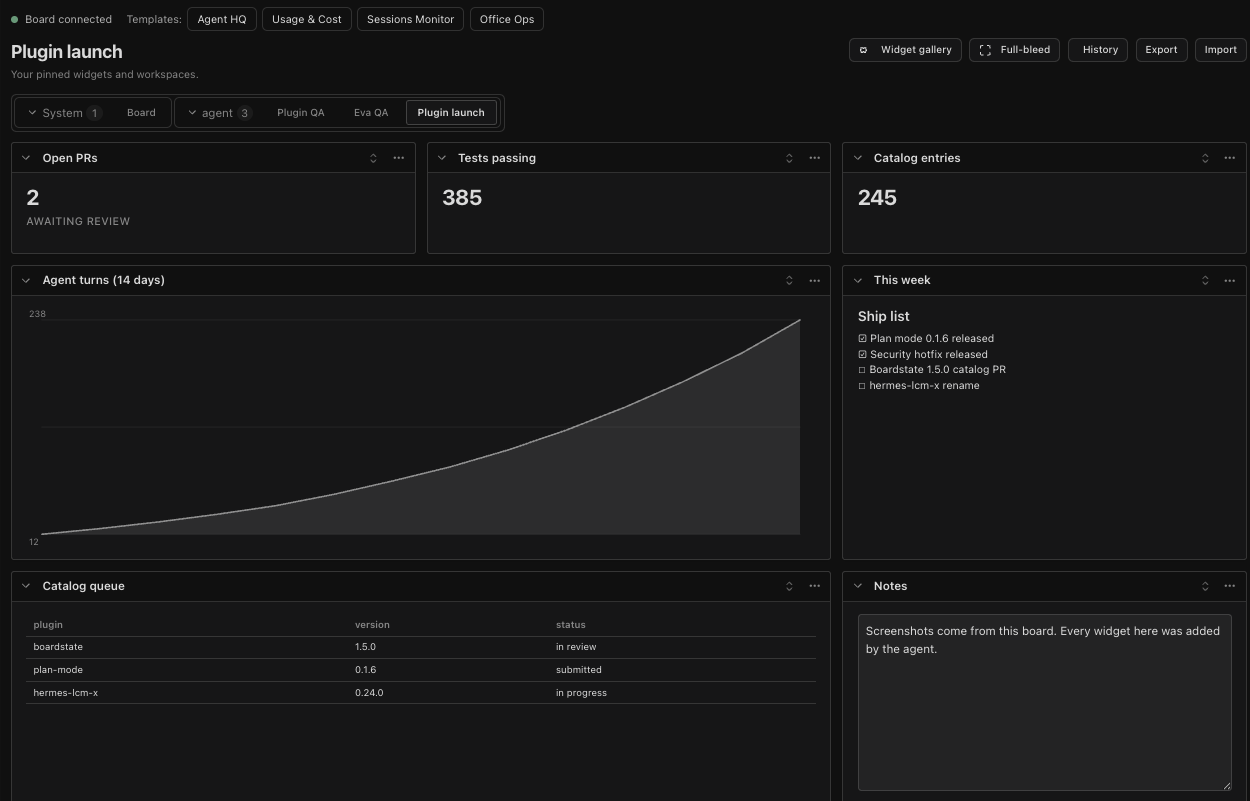

The same kind of board on the Board page in Hermes Desktop:

License

MIT — see LICENSE.
