Hermes Workflows

Agent-owned workflow graphs for Hermes Agent. Your agent authors a JSON graph of agent nodes, fan-outs and gates; a background runner executes it outside the caller process tree and hands results back through the same workflow tool it launched from. Hermes Desktop draws the live DAG.

What you get

Capability	In one line
Graph runs	Agent nodes with goal, after edges, per-node model/provider/reasoning, and max_turns/timeout/run_budget caps

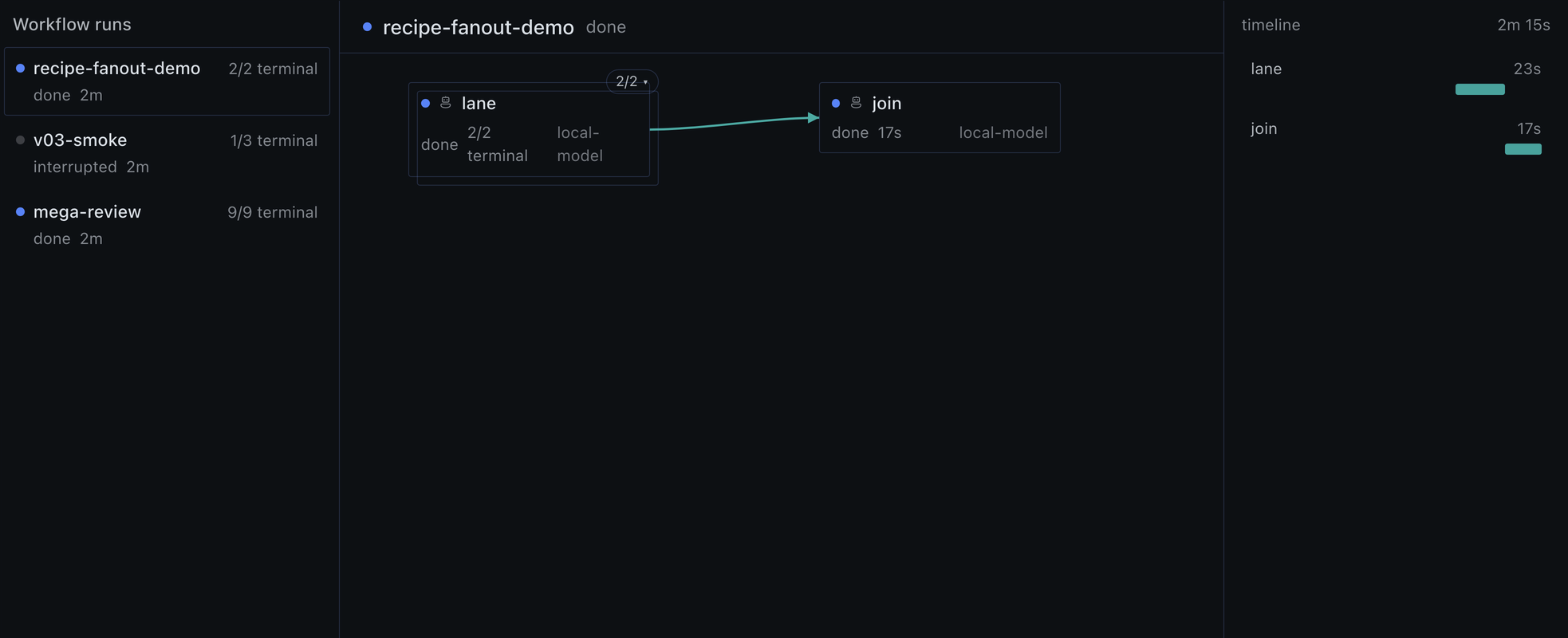

Fan-out	One node → N live children from fanout.items or items_from:"<node>.items"; per-item liveness, quorum

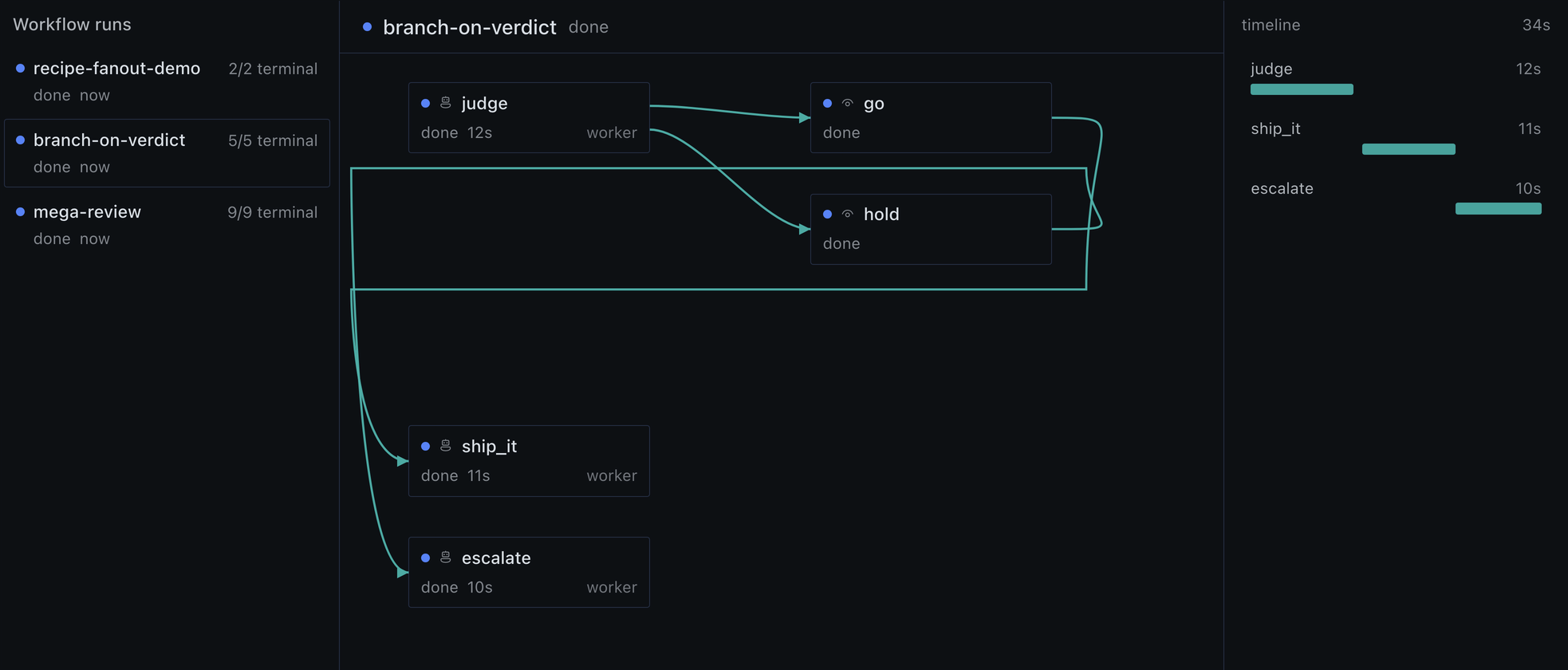

Human + machine gates	A gate holds on a question until release; gate.wait holds for a timer or an argv probe; when predicates branch on upstream output; on_skip:"prune" kills the losing arm
Fingerprint resume	Every finished node records an effective fingerprint. Crash, restart, or amend the graph — only what actually changed re-runs
Cooperative steer	steer queues text; a running child pulls it at its next seam via the tool's inbox action
Typed failures	Every node.failed event carries error_class + attempts (timeout, cap_exhausted, provider_400, schema, cancelled, fatal_quota, route_unavailable, …) — the parent never infers a cause from prose
Route integrity	A node that pins an explicit model is fail-closed by default (require_route): a dead or fallback-surprised pin refuses the launch instead of silently billing another model; an alive-proved pin bakes the door-only route_verified and the runner holds the served model to it
Compact status	Mid-run status/wait return output pointers; detail:"full" opts into everything; terminal payloads are always full

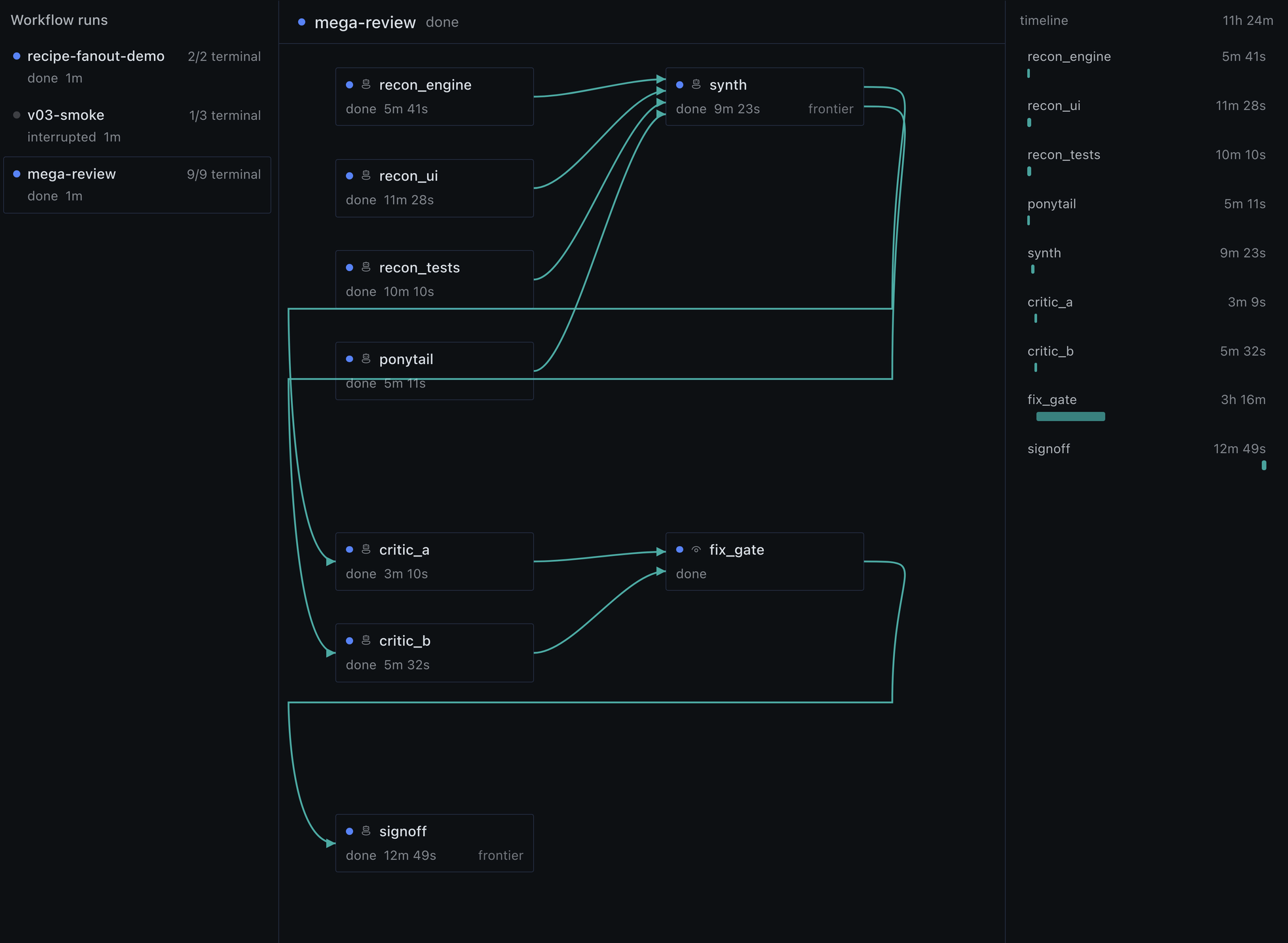

Desktop DAG view	Live graph, fan-out stacks, timeline, and a ::workflow{id="…"} inline card in any reply; the live-run strip mounts below the composer dock (composer.underside, core ≥ v2026.7.30 — falls back to above-it composer.top on older shells)
Library	save a proven graph (description + tags), library lists it richly, run with from: replays it; a hand-rolled graph the library missed goes to submit with a why_not_library receipt — quarantined for study, never auto-saved; inbox lists them
Authoring skill	Bundled workflow skill with grammar, operations, and measured per-shape budget recipes

Install

hermes plugins install hermes-workflows      # from the catalog (pinned SHA)
hermes plugins enable hermes-workflows

Restart the backend (hermes serve) so the tool and dashboard routes mount. Before disabling or removing the plugin, stop live runs: use workflow {"action":"list"} to find their run IDs, then workflow {"action":"stop","run_id":"<id>"} for each. Detached runners can outlive a session, gateway restart, or plugin disable until a boundary; disabling alone does not stop them. Desktop gate answers use the SDK to send a visible resume turn to the run owner's chat; older Desktop builds insert text for you to send, or ask you to type workflow wait in that owner chat. If Hermes Desktop runs on a different machine than the backend, copy desktop/plugin.js to that machine's ~/.hermes/desktop-plugins/hermes-workflows/plugin.js — the app hot-loads it. Manual/zip install and removal: INSTALL.md.

Then ask your agent for a workflow. The bundled skill teaches it the grammar; the smallest graph is one node:

{ "name": "check",
  "nodes": [{ "id": "inspect", "type": "agent",
              "goal": "Inspect the target. Return one fenced JSON object." }] }

workflow { "action": "run",  "graph": <the object above> }   → run_id
workflow { "action": "wait", "run_id": "<run_id>" }          → repeat until terminal

Two builds, one codebase

The plugin needs no patched Hermes. Every child spawn rides the stock quiet one-shot CLI contract, and every install runs the same code. Exactly one field differs, and it is optional:

	stock Hermes (catalog install)	with the optional core patch
graphs, fan-out, gates, steer, resume, desktop view, cards	✓	✓
a child that dies on its max_turns cap	error_class: unknown + preserved partial/log	typed error_class: cap_exhausted + reason
how	nothing to do	one sha-stamped patch — docs/patched-core.md

The tier is self-reported: after a failed child, status shows turn_report: typed or untyped, so you always know which build you're on. When upstream PR #121041 lands, the branch collapses and that doc deletes itself.

Requirements

• Hermes Agent ≥ v2026.9.21 (package version 0.21.4) (measured stock -Q CLI and quiet turn-report contract; see docs/catalog/pr-body.md). Older 0.21.3 deployments are below this declared floor and will skip plugin admission.
• Python 3 (stdlib only — the plugin imports nothing outside Hermes)
• Node for the desktop half's tests only; the app loads plugin.js uncompiled

For agents and contributors

AGENTS.md is the front door: repo map, install/operate/contribute procedures, the test contract, and the rules that keep the tree publishable. Changes are gated by the serial suite (python3 scripts/suite.py . ci-out) and hermes plugins validate . — both run in CI.

The repo ships a graphify knowledge graph (graphify-out/, deterministic AST — no LLM in the build). graphify query "<question>" returns a scoped subgraph instead of a grep dump; graphify-out/GRAPH_REPORT.md is the architecture overview. CI fails if the committed graph drifts from the tree.

License

MIT — see LICENSE.
